double chamber vacuum packing machine

manual double chamber vacuum packing machine

double chamber vacuum packing machine

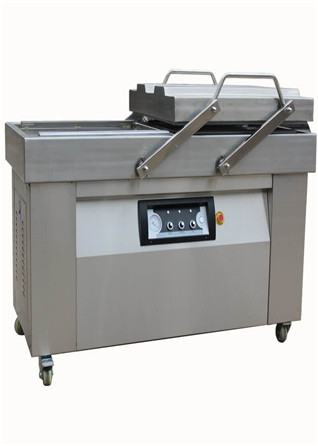

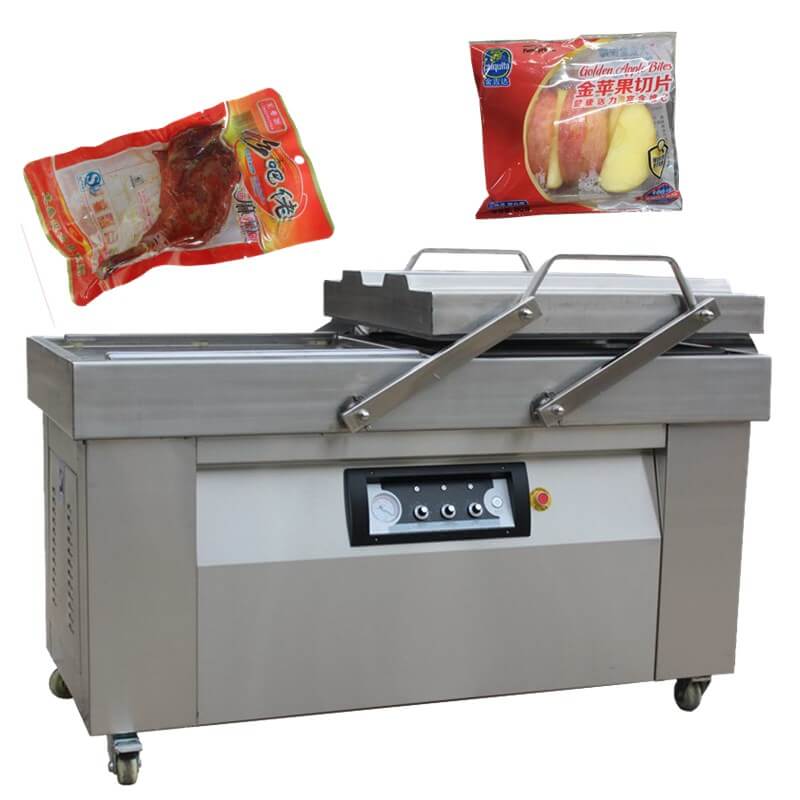

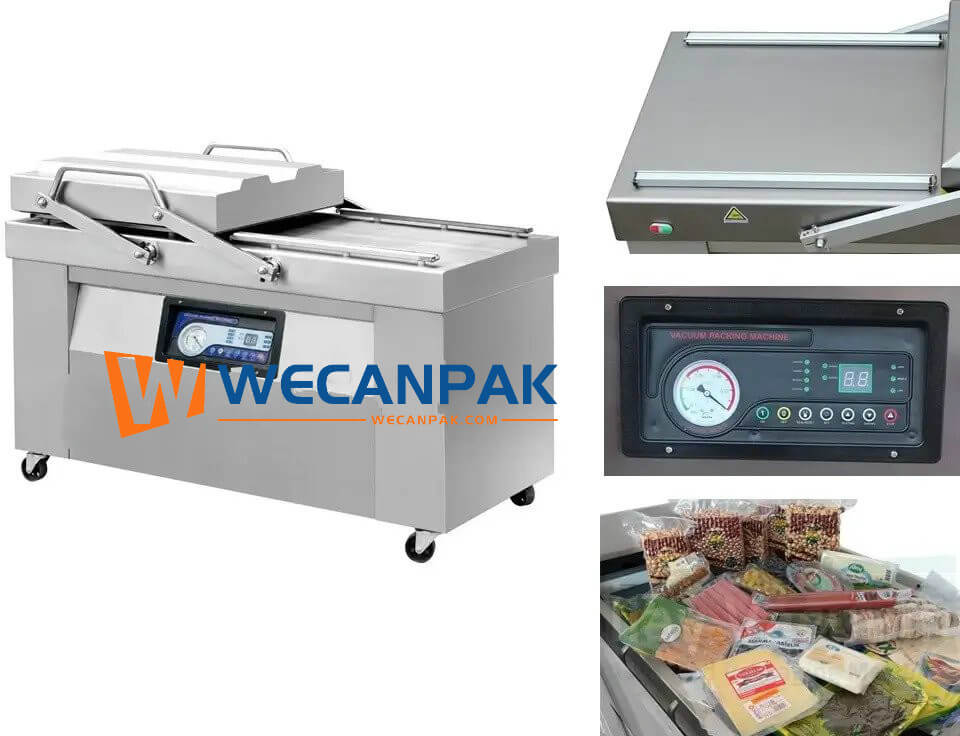

The double chamber vacuum packing machine is a typical type of chamber vacuum sealer, designed for the small and medium-size production capacity of vacuum sealing.

Compared to single chamber vacuum sealer, a double chamber vacuum packing machine owns 2 working chambers and 1 swingable chamber cover. The two chambers work alternatively to enhance the vacuum packing speed of the double chamber vacuum packing machine to 2 times of single chamber vacuum sealer.

Model DZ-4002SB/DZ-5002SB/DZ-6002SB3sizes/3models
Voltage 200V/380Vcan be customized
Vacuum pump Chinese ZD vacuum pump or Germany Busch vacuum pump
Power of pump 0.75kw-2.5kw
Sealing 2pcs*400mm/500mm/600mm lengthwidth 10mm
Power of heating 0.8kw/0.9kw/1.0w
Packing capacity 1-3cycles/min
Size of vacuum chamber L500mmW520mm/L600mmW590mm/L720mmW660mm* H100mm
Material of machine body 304 stainless steel
Overall size 955mm*620mm*930mm /1195mm*690mm*930mm/1410mm*760mm*930mm
Net weight 190kg/225kg/365kg
Control system Time control with PCB
Gas flushing Optional
Certificate CE


  • Complete stainless steel structure for maximum durability
  • Hygienic design, easy to clean
  • Flat deck construction ensures easy cleaning and product handling without space restriction
  • Two vacuum chambers configuration permits alternative operations for one operator
  • Highly efficient European vacuum pump
  • Microcomputer control system & electrical box are waterproof
  • Simple to operate microcomputer control system with multiple program setting options
  • Vacuum chamber with solid height adjustable filler plates
  • Applicable for various mass production factories


  • Special design is available for various product
  • Chamber height 250mm, 300mm
  • Gas flushing, bi-active sealing system, cutting system (cut off remaining pouch)


  • Maintain food's freshness and original flavor
  • Anti-spoiling
  • Extend product shelf life
  • Prevent electronic and hardware parts from oxidization
  • Available for special applications


  • Fresh meat, seafood, pickled vegetables, agricultural products, herbs, powder, spices, bean paste and prepared foods...etc.
  • Electronic parts, hardware products, medical instruments, medicine, clothing or blankets...etc.
