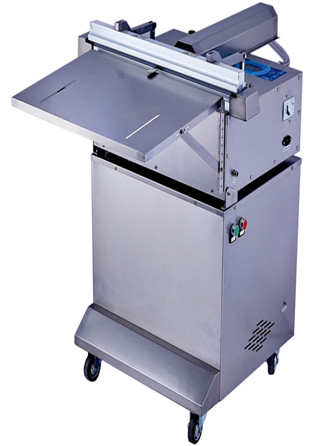

external vertical vacuum packing machine

external vertical vacuum packing machine

Description




                                                                    Multi functions
Function 1. Sealing only
Function 2. Vacuum-seal
Function 3. Gas fill-seal
Function 4. Vacuum-gas fill-seal
Function 5. Gas fill-vacuum-seal
Function 6. Vacuum-gas fill-vacuum-seal
Function 7. Gas fill-vacuum-gas fill-seal
Function 8. Vacuum-gas fill-vacuum-gas fill-seal

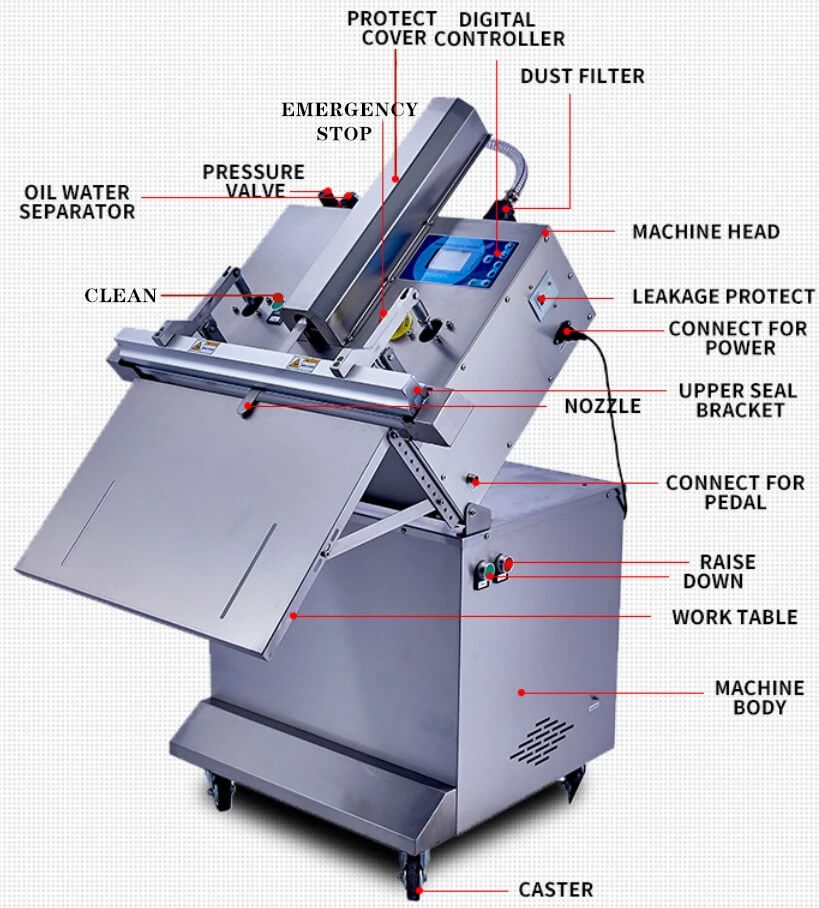

Advantage
--- Low noise.
--- Supply 8 functions.
--- 450-1200mm seal length.

--- Work table is 0-45° tiltable.
--- Easy to operate and maintain.
--- Only 14s-18s each packing cycle.
--- Flow of gas flush can be adjusted.
--- Memorize 10 different packing set.
--- Support wide range of bags also thick bags.
--- Equipped with oil/water separator and dust filter.
--- Special button to clean inside hose automatically.
--- When withdraw nozzle, the machine still vacuum.

--- Installed with brakeable caster. Easy to move and stop.
--- Low gas consumption, and it can fill sufficient gas into bag.


Model DZQ-450OT DZQ-600OT DZQ-6004OT DZQ-700OT
Seal size L 450mm * W 8mm L 600mm * W 8mm L 650mm * W 8mm L 700mm * W 8mm
Nozzle number 1 nozzle 1 nozzle 4 nozzles 1 nozzle
Material 304 grade stainless steel
Voltage and power 110V/220V/240V     50HZ/60HZ    1 phase      0.5-1Kw
Vacuum pump XD vacuum pump, supply 15 m3/h vacuum capacity
Heat system Single heat system
Controller Waterproof digital controller, language in English/Chinese
Function 8 packing modes, with vacuum, gas fill, seal, counting, process memorize
Spare parts 1 set wre nch, allen key, teflon cloth, teat strip, pump oil, English manual

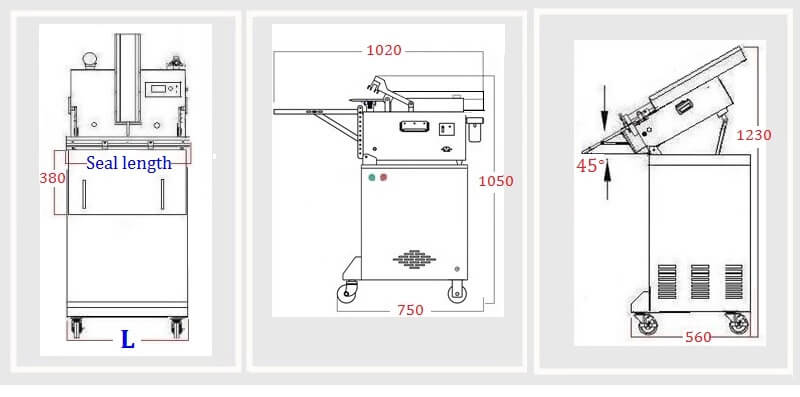

Overall size L 590*750*1230mm L 760*750*1230mm L 760*750*1230mm L 800*750*1230mm
Net weight 105Kg 110Kg 127Kg 135Kg

Air compressor Air compressor is required for this machine, buyer shall prepare it himself.

Model DZQ-800OT DZQ-900OT DZQ-1000OT DZQ-1200OT
Seal size L 800mm * W 8mm L 900mm * W 8mm L 1000mm * W 8mm L 1200* W 8mm
Nozzle number 1 nozzle 1 nozzle 1 nozzle 1 nozzle
Material 304 grade stainless steel
Voltage/Power 110V/220V/240V    50HZ/60HZ    1Phase    0.5-1KW
Vacuum pump XD vacuum pump, supply 15 m3/h vacuum capacity
Heat system Single heat system
Controller Waterproof digital controller, language in English/Chinese
Function 8 packing modes, with vacuum, gas fill, seal, counting, process memorize
Spare parts 1 set wre nch, allen keys, teflon cloth, heat strip, English manual
Overall size L 900*750*1230mm L 1000*750*1230mm L 1100*750*1230mm L 1300*750*1230mm
Net weight 140Kg 150Kg 160Kg 180Kg

Air compressor Air compressor is required for this machine, buyer shall prepare it himself



1. Suitable item. Solid item like beans, meat, fish, sausage, cheese, fruit, vegetables, hardware etc.
2. Not suitable for powder/liquid, or products which sensitive with pressure.
3. Package weight shall be less than 15Kg.
4. Bag size shall be bigger than 20*15cm.
5. Bag type. Bag with zipper, folder, or 3-seal side.
6. Bag material. Paper, plastic, aluminium. Thick bag is accepted.

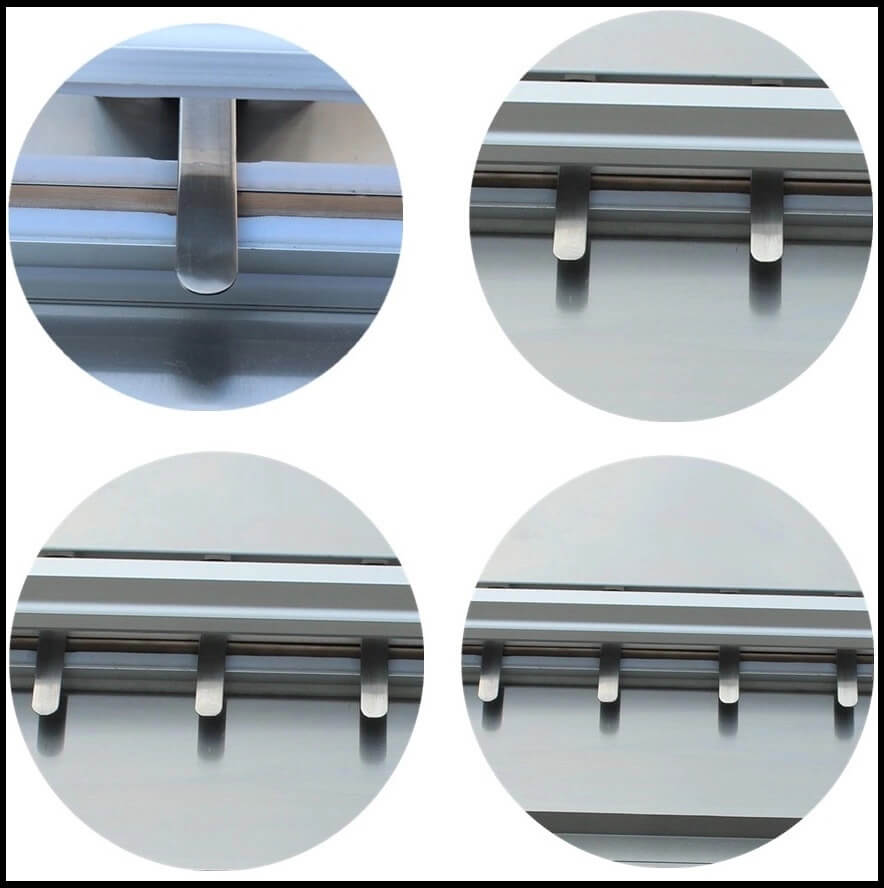

Nozzles
* When the machine withdraw the nozzle, the nozzle still vacuum, thus ensure the vacuum degree.

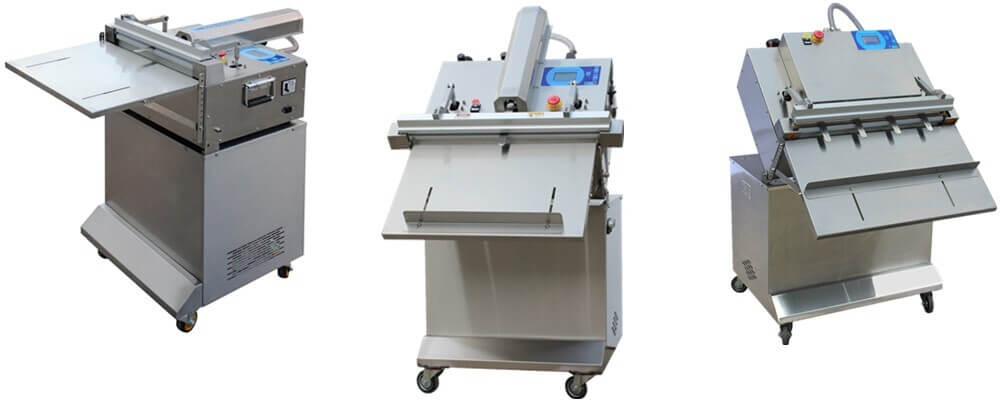

* For machine with seal longer than 600mm, we can put maxi 4 nozzles, so that it can pack more bags at the same time.


Differnet nozzles, different price

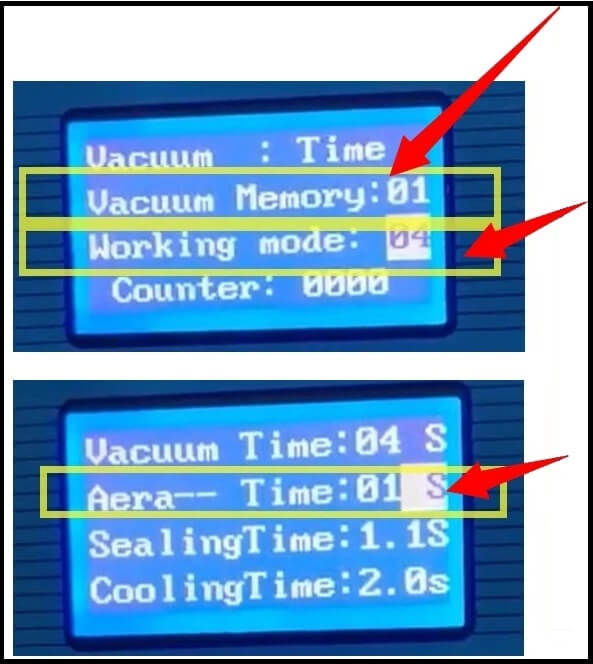

Waterproof controller

* Memory. Client can store 9 sets in the controller.

* Work mode. Client can choose different function here.

* Client can set time for vacuum / gas fill / seal / cool this page.

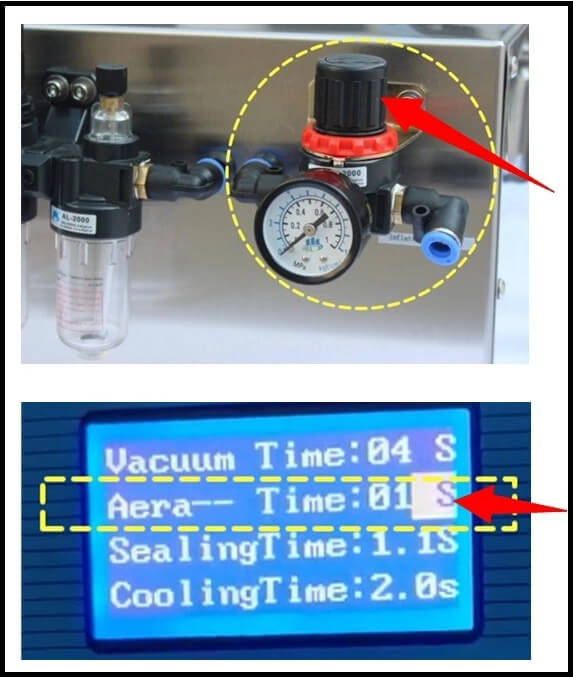

How to adjust gas fill

* We leave a hole here for gas fill, just connect it with gas bottle directly.


* Turn this cap, you can adjust gas input flow. It shall be lower than 0.2Mpa.

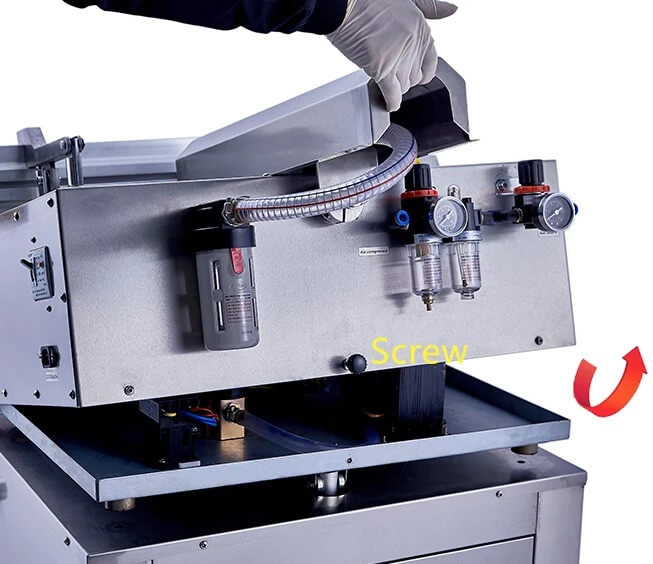

How to open electric box?


Just loose the screw, you can open the electric box easily.

Support modified atmosphere packaging

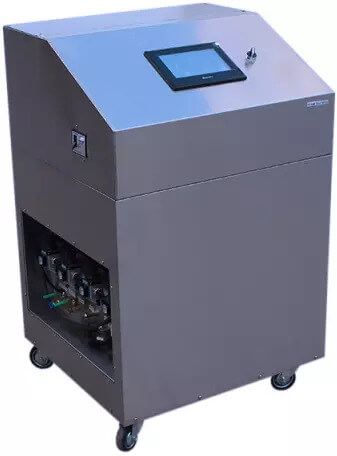

The left picture is a gas mixer. It will premix O2/N2/CO2 with preset ratio before filling.

Just connect the vacuum sealer with a seperate gas mixer, it can support modified atmosphere packing, which can keep fresh and original taste of food, also extend shelf life.

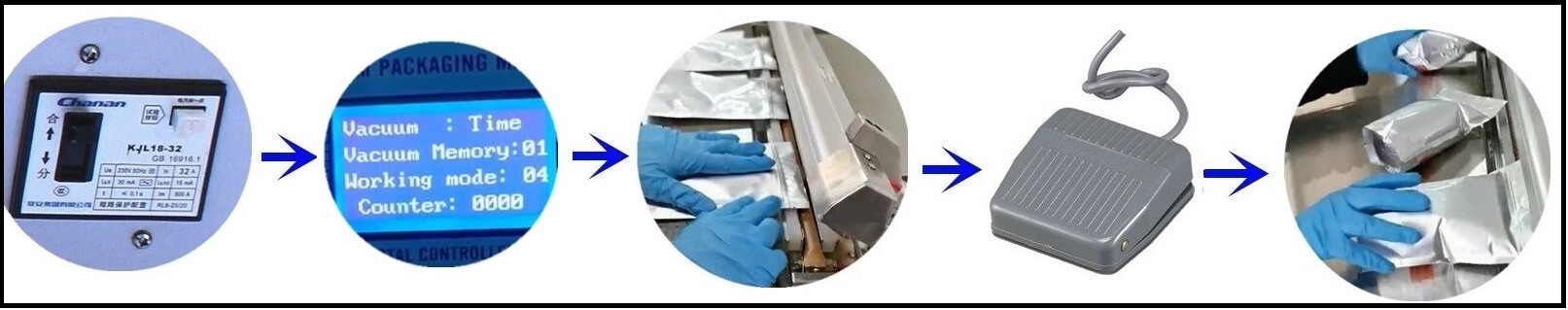

How to pack bags?

a. Pull up air switch.
b. Choose pack mode and set time on controller.
c. Insert nozzles into bags and align bag onto seal unit.
d. Press pedal by foot.
e. Remove ready bags.

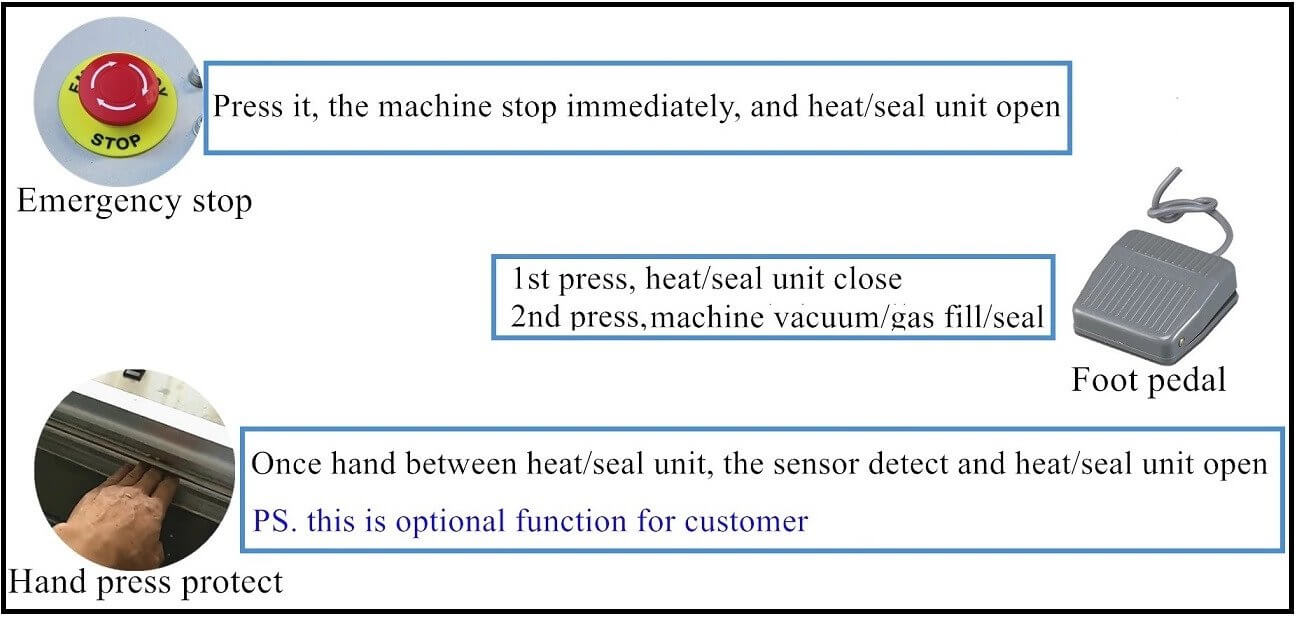

The safety is guaranteed.
