hot water shrink Tunnel

automatic hot water shrink Tunnel

Description

ST-4 shrink tunnel is designed for the maximum output and pack size from chamber belt machines.



Product Description
  1. Equipment performance description:

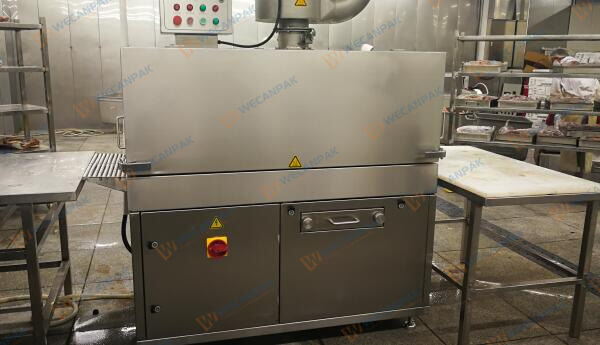

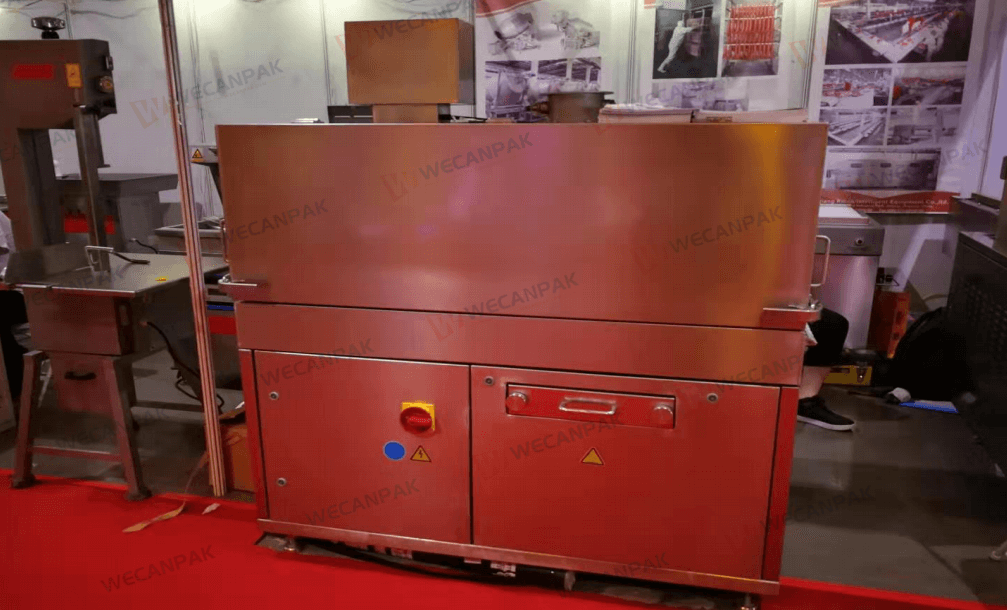

 ST-4hot water shrink tunnel is designed to use all sizes of heat shrinkable bags, and is widely used in heat shrinkable packaging of meat food. With the function of heat shrinkage.

   This machine contains hot water spray and automatic delivery system. The products to be heat-shrinked are transported by the stainless steel conveyor belt into the hot water spray area controlled by automatic constant temperature to obtain consistent shrinkage effect, and then transported out of the equipment.

  The machine has a simple structure, and the design and materials used meet the relevant requirements of food hygiene.

   2. Main performance parameters:

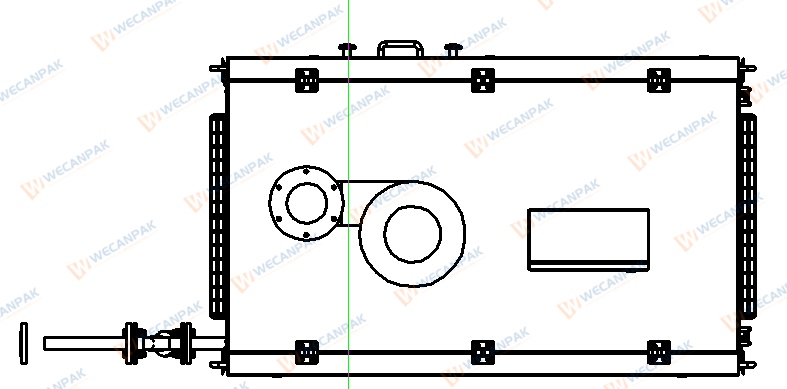

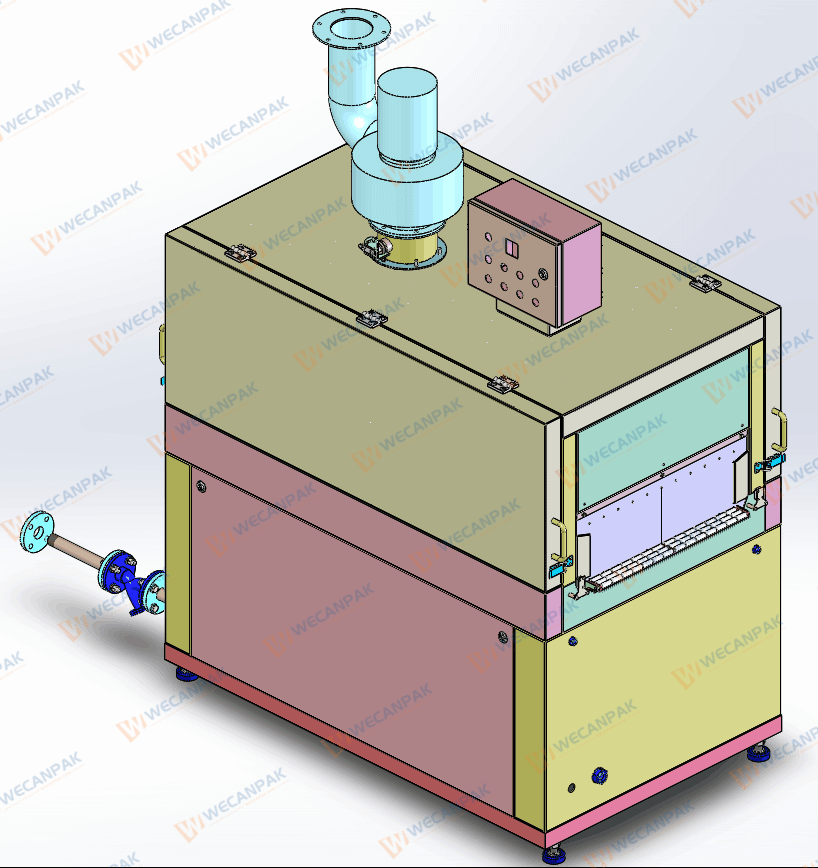

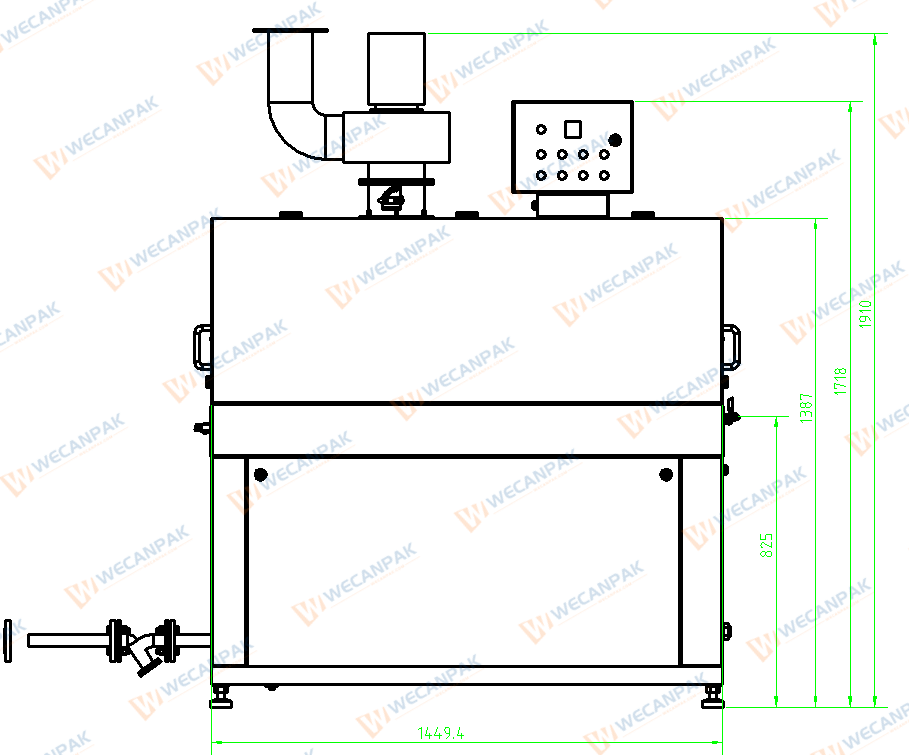

  Equipment dimensions: 1450*900*1400 (see attached picture for details)

  The power of the whole equipment: 3KW (excluding the electric power in the electric heating mode)

  Electric heating power: 52KW (electric heating method is optional, optional)

   Steam pressure: 0.2MPa~0.5MPa, steam consumption: about 80kg/h (steam is recommended)

Inlet and outlet height 800mm, effective width: 400mm, product effective height: 200mm

3. Equipment interface parameters:

   Water tank inlet port: DN15, flanged steam port: DN25, overflow and drain port DN40, exhaust port (inner size) φ150

   Fourth, equipment performance characteristics:

   1. Modular design, the whole machine is made of 304 stainless steel, and the exterior is polished;

  2, the use of stainless steel conveyor chains with through rods, good load-bearing, stable and reliable operation;

  3, the domestic South Pump Industry water pump (high temperature resistant, pump body stainless steel);

  4. The conveyor chain adopts frequency conversion speed regulation to ensure the heat shrinkage effect;

   5. Hot water spray to ensure no omission of heat shrinkage;

  6. ​​Automatic water replenishment of the water tank, automatic heating and temperature control, low water level protection to ensure safe operation;

  7. The detachable frame design and the snap-in spray pipe design are used to facilitate equipment maintenance and cleaning;
