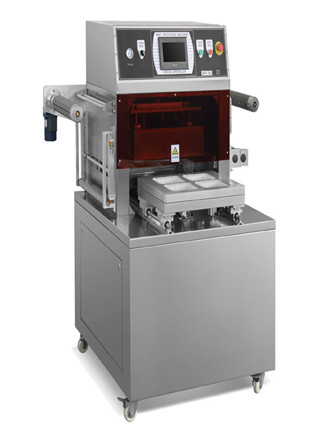

semi-automatic vacuum skin packing machine

semi-automatic vacuum skin packing machine

semi-automatic vacuum skin packing machine
semi-automatic vacuum skin packing machine

Advantage of VSP
* Prolong shelf life of food
* Can be heated in microwave oven

* Make food more attractive to buyer
* Easy display in supermarket
* Individually built for your trays

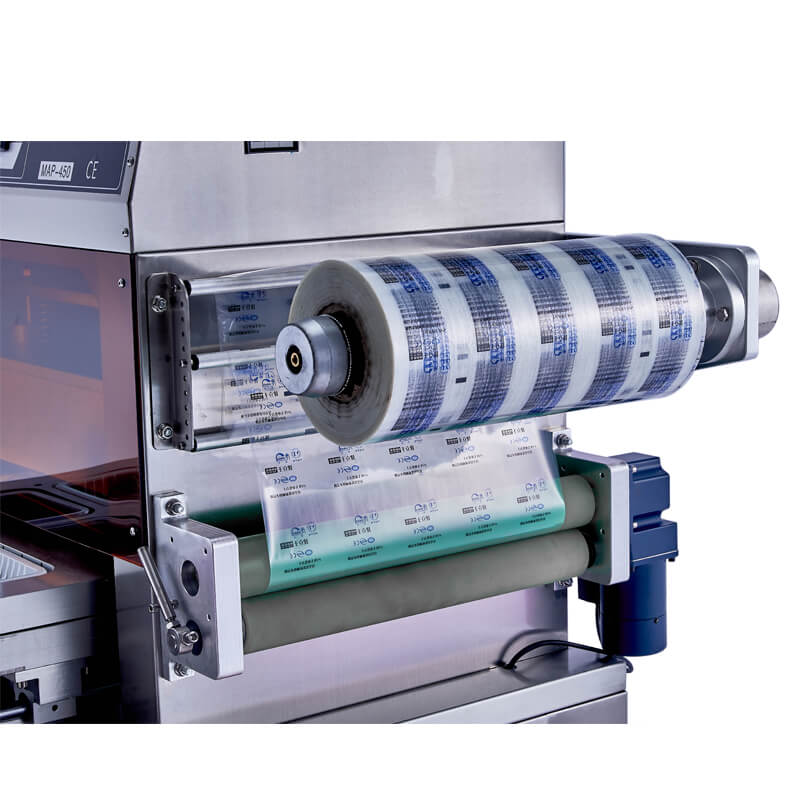

* Automatic film feeding, more sanitary
* Installed with German vacuum pump

Model SKIN-450
Voltage 380V/50HZ/3phase or customized

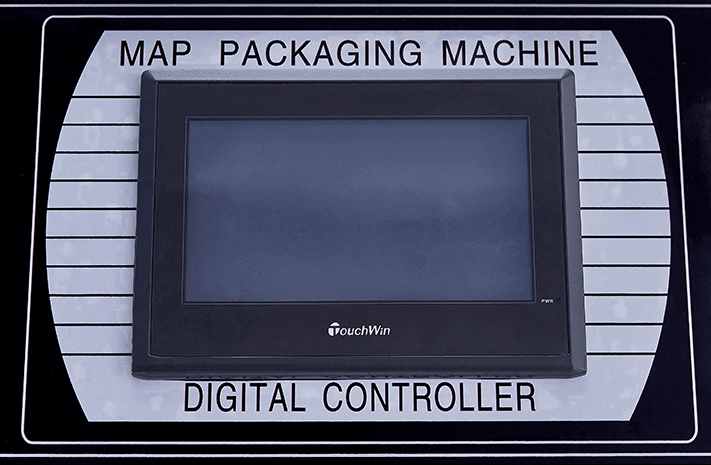

Controller IDEC PLC + Weinview touch screen
Vacuum pump Rietschle 100m3/h from German
Vacuum degree Maxi 0.1Mba
Material Mainly 304SS

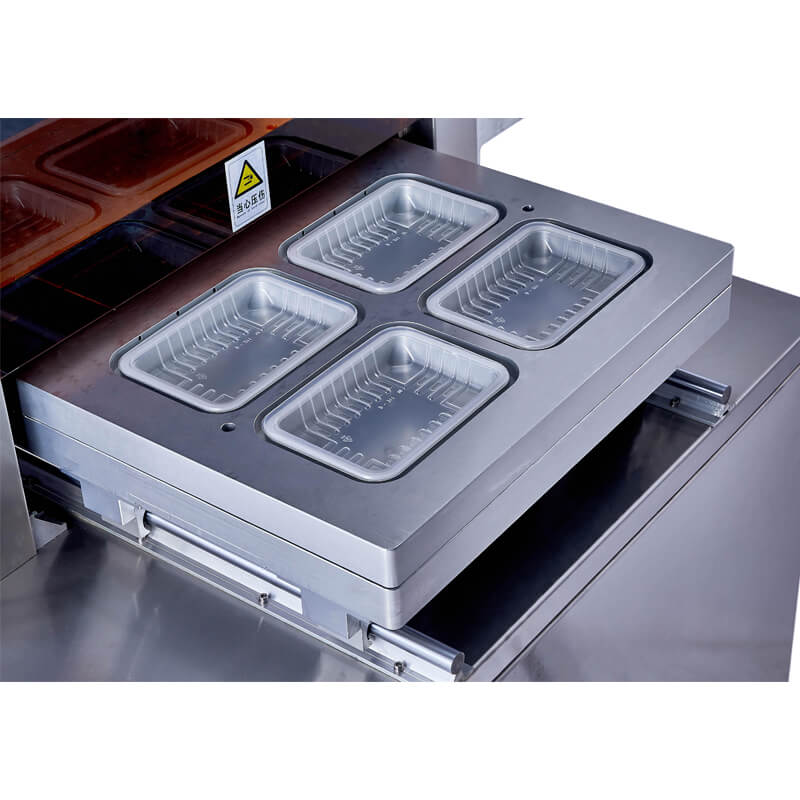

Tooling Include 1 tooling for one tray design. It is customized
Packing capacity About 3 cycles per minute
Overall size 1350*1050*1650mm
Weight About 450KG
Power consumption About 5KW
Certificate CE
Guarantee 1 year
Language English/Chinese/Spain for option
Air compressor Not include in the price. The air pressure shall be about 0.6-0.8Mpa

This is SKIN 450 vacuum skin pack machine. It will make your food such as fresh meat, fish, cooked food, fruits more attractive, and can extend the shelf life. Turn off the heat time, vacuum time on touch screen, and use common film for seal, it will support you to heat seal the tray directly.

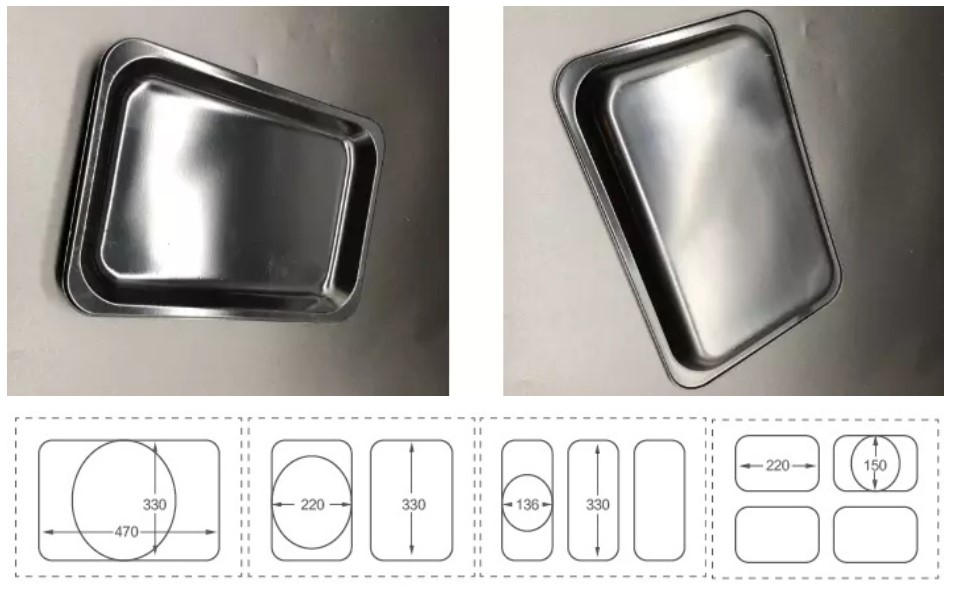

---Tray size
* It can pack several trays at the same time, which depends on your actual tray size.
* Above layout is just for reference. The tray size not limited in above size.
* Accordingly to actual tray sample, the tooling of machine will be individually built for client.

If you need other skin vacuum packing machine for food or nonfood,please check link

①If you want to check other vacuum packing machine,
please check all model via
②If you want to know which vacuum packing machine suitable to pack your product
and get more details and free quote,please contact us directy on followong form for more details and price or email   whatsapp/wecanpak +8613962950647
