automatic double chamber vacuum packing machine

automatic double chamber vacuum packing machine

automatic double chamber vacuum packing machine

1. Food grade 304SS for machine body.
2. Big vacuum chamber and long seal.
3. IP65 grade, and flat work table. User can clean it easily.
4. Function: Vacuum+seal. It prolong store life of your products.
5. Accept customized requirement for deep vacuum chamber, automatic swing lid, control panel, vacuum pump, gas filling, full 304SS etc.

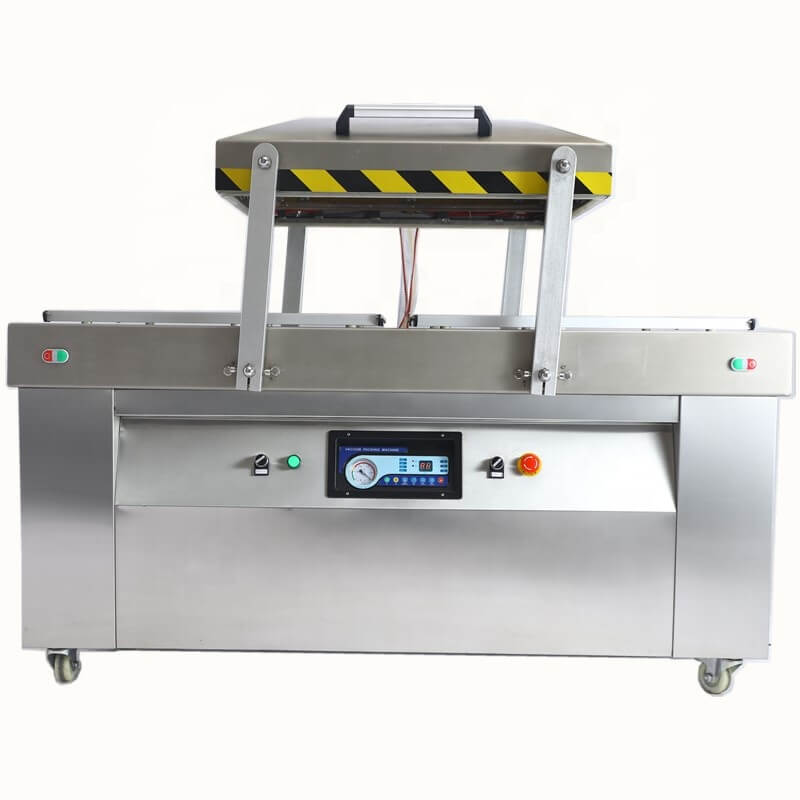

Ruibao 304SS automatic swing lid vacuum packing machine for food meat fish DZD-680/2SD made in China


Price online here is based on standard machines with following paramters

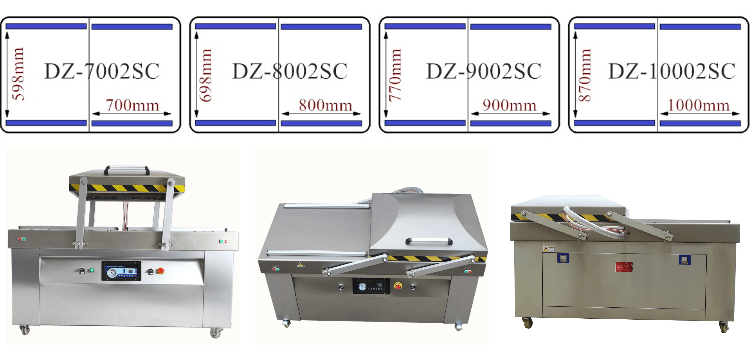

Model DZ-7002SC DZ-8002SC DZ-9002SC DZ-10002SC
Machine body Food grade 304SS for its surface, work table and swing lid
Inside frame Painted iron
Work table Flat work table
Chamber depth 120-180 mm (the chamber depth is in the swing lid)
Chamber size 800*720*180mm 900*820*180mm 1000*900*180mm 1100*960*180mm
Sealing length 700mm 800mm 900mm 1000mm
Sealing width 10mm 10mm 10mm 10mm
Sealing number 2pcs 2pcs 2pcs 2pcs
Distance between seal 598mm 698mm 770mm 870mm
Vacuum pump ZD brand 63m3/h ZD brand 63m3/h ZD brand 100m3/h ZD brand 200m3/h
Main power  approx 1.5KW approx 2KW approx 2.5KW approx 3KW
Voltage 380 V/450 V         50 HZ/60 HZ       3 phase    (or customized)
Pack capacity 1-2 cycles / min
Swing lid manual swing lid (Automatic swing lid is optional function)
Control panel PCB (Relay / PLC  are optional controller )
Weight(w.o pump) 260KG 320KG 385KG 450KG
Overall size(mm) 1615*830*1050 1815*960*1050 2015*1030*1050 2215*1130*1050
Function vacuum+seal (Gas fill is optional function)
Certificate CE
Guarantee 1 year (for main component, exclude durable spare parts)
Language Control panel and printed manual in English language
Lead time 15days to get machine ready for standard machine. Need negotiate for customized function.

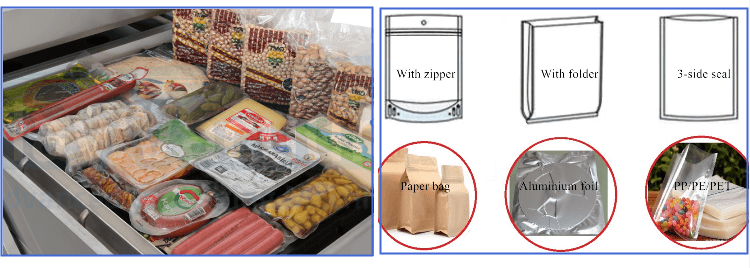

a. Beans, meat, fish, sausage, cheese, fruit, vegetables,
hardware, electronic etc.
b. Forms of products, solid, liquid, powder, paste etc.
Bag type
a. Bags with zipper, folder, or 3-seal side.
b. Material. Paper, plastic, aluminium.

Customized functions you may need
We have many customized functions for your options.
Please specify if you need any of them. There will be extra cost for some function.

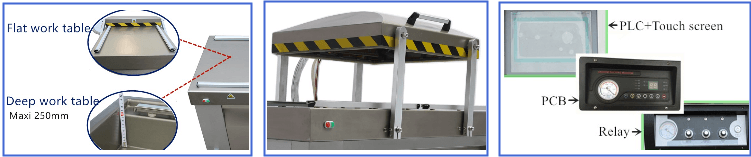

Standard. flat work table Customized. a. Maxi 250mm deepb. Distance between seals can also be customized.

Swing lid
Standard. manual Customized. Automatic a. Automatic swing lid will save labor power for you. b. Two automatic modes for you. c. You can switch any as you like.
Control panel
Standard. PCB PCB support vacuum or gas fill. Customized. Relay /PLC a. Relay does not support gas fill. b. PLC support more option than vacuum /gas fill

Gas flush
Standard. No gas flush
Customized. With gas flush

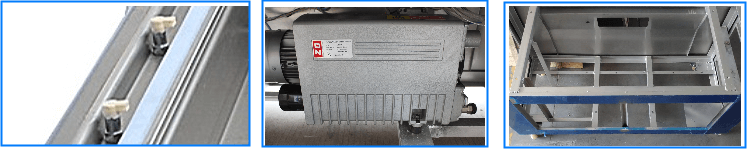

Vacuum pump
Standard. ZD brand ZD brand has top quality in China.
Customized. Busch brand
Inside frame
Standard. Iron with paint.
Customized. 304SS 304SS inside frame will make machine more durable, especially in heavy enviroment.

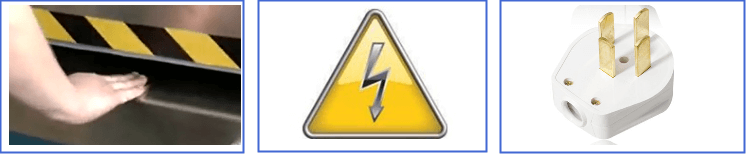

Hand press protect
Standard. Not include. Already put emergency stop in case of hand press. Customized. Include It upgrade the safe grade. Once the machine find there's hand, the lid will open automatically.

Standard. 380V 50HZ 3Phase. Customized. other voltage 380V/415V/450V 50HZ/60HZ 3Phase No extra charge for this.

Standard. as in above picture. Customized. Others. We can purchase other plug as required. No extra charge for this.

Tag:Heavy Duty Double Chambers Vacuum Packaging Machine,air tight packing machine
