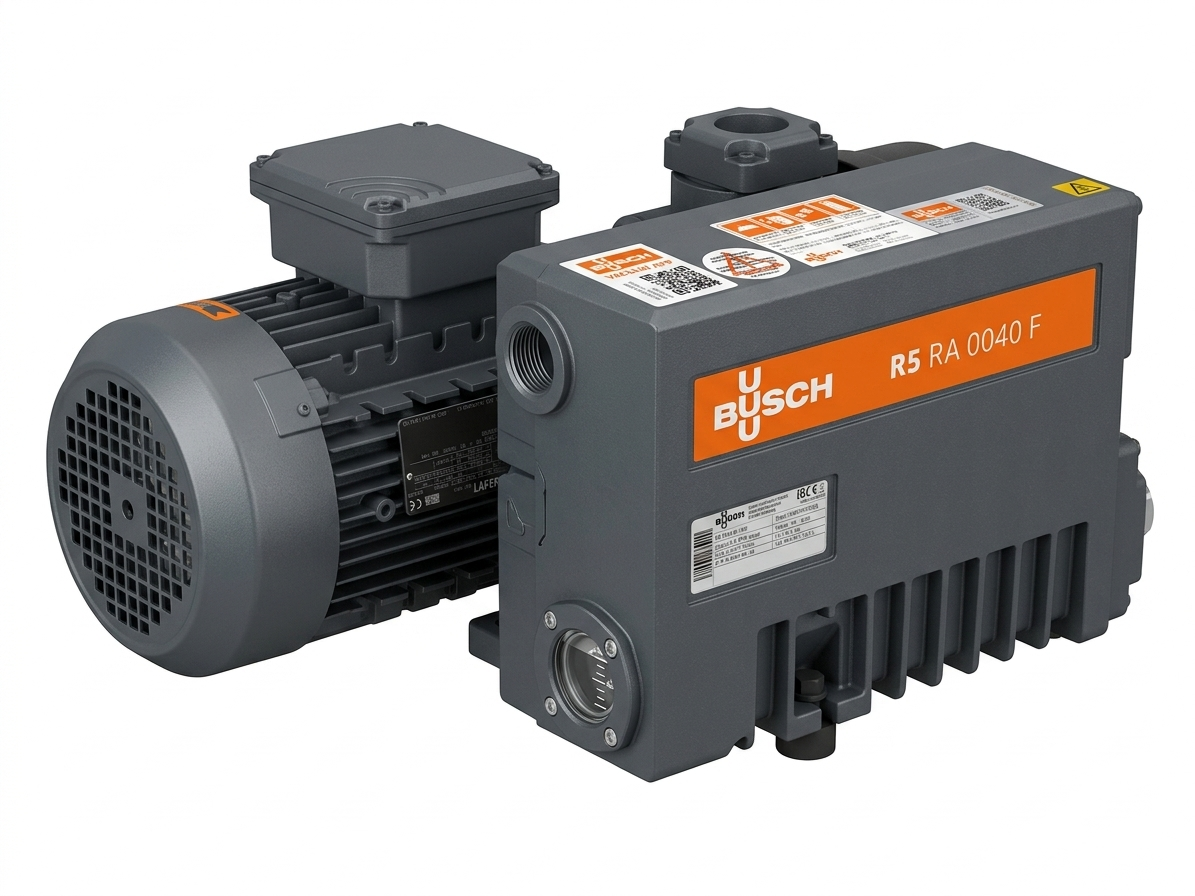

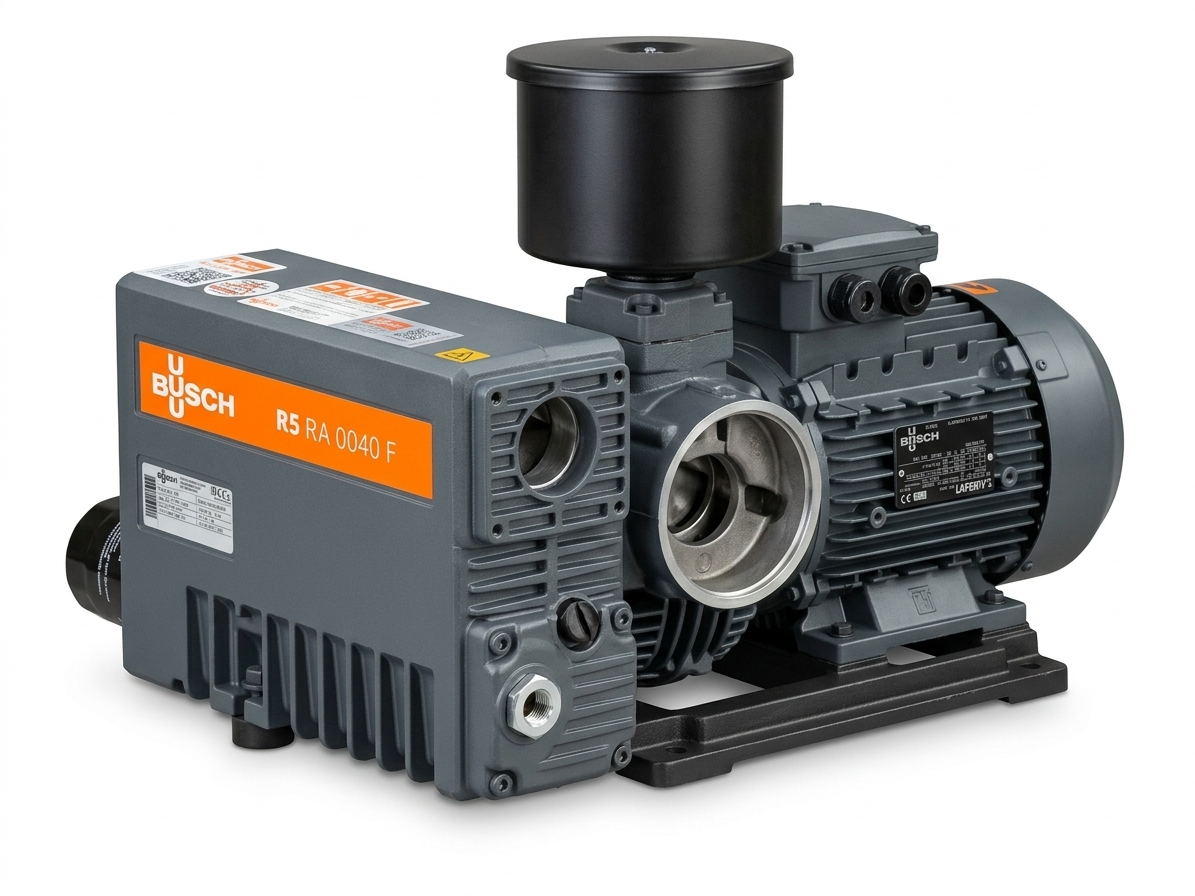

The Busch R5 RA 0040 F is a cornerstone of industrial vacuum technology, belonging to the world-class R5 rotary vane series. Renowned for its robust construction and unwavering reliability, this model is specifically engineered to handle the rigorous demands of medium-scale industrial applications, particularly where continuous operation is non-negotiable.
The RA 0040 F is built for heavy-duty performance, offering a perfect blend of power and endurance:
Nominal Pumping Speed: 40 $m^3/h$ at 50 Hz (increasing to 48 $m^3/h$ at 60 Hz).
Ultimate Pressure: Capable of reaching 0.1 hPa (mbar), providing a deep vacuum for sensitive applications.
Motor Power: Standard 1.5 kW motor, optimized for energy efficiency.
Operating Temperature: Managed by an effective air-cooling system to ensure stability under load.
Oil Capacity: 1.0 liter, with an integrated high-efficiency exhaust filter.

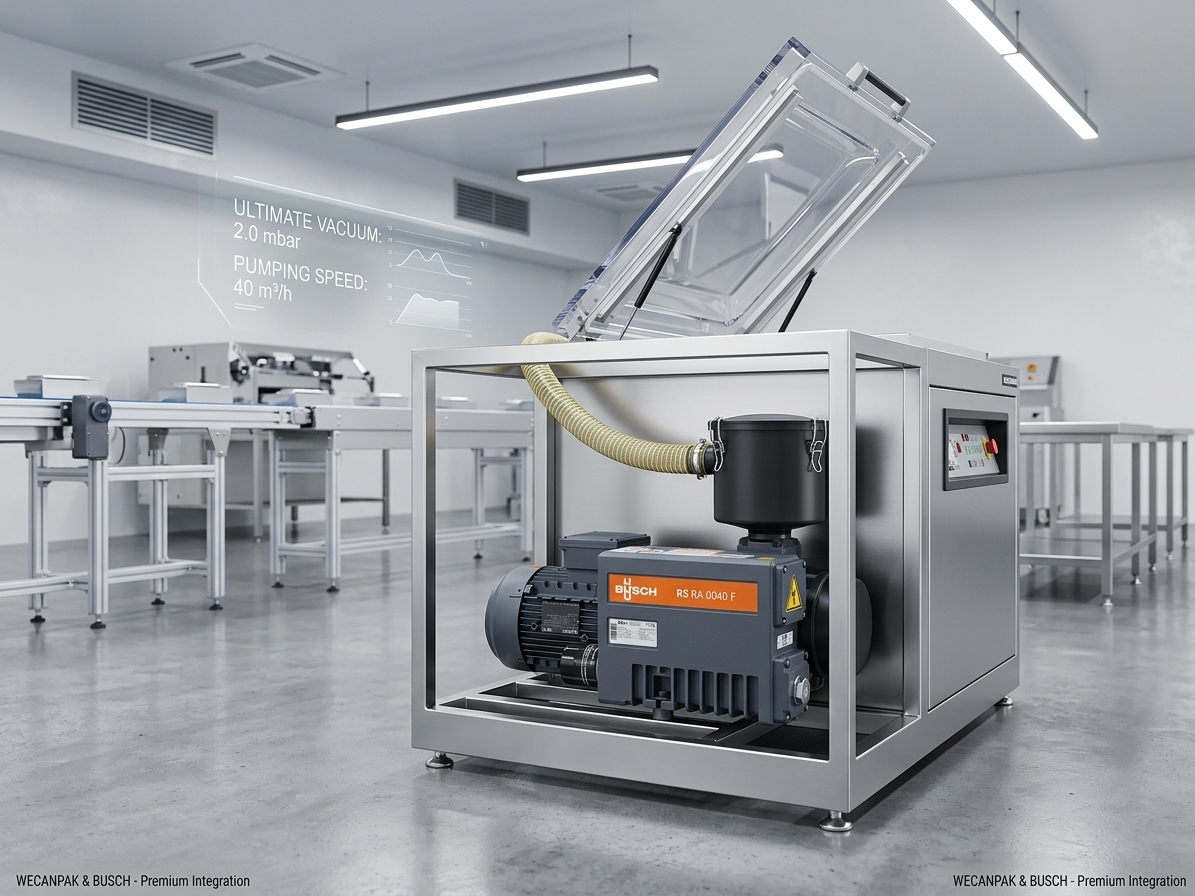

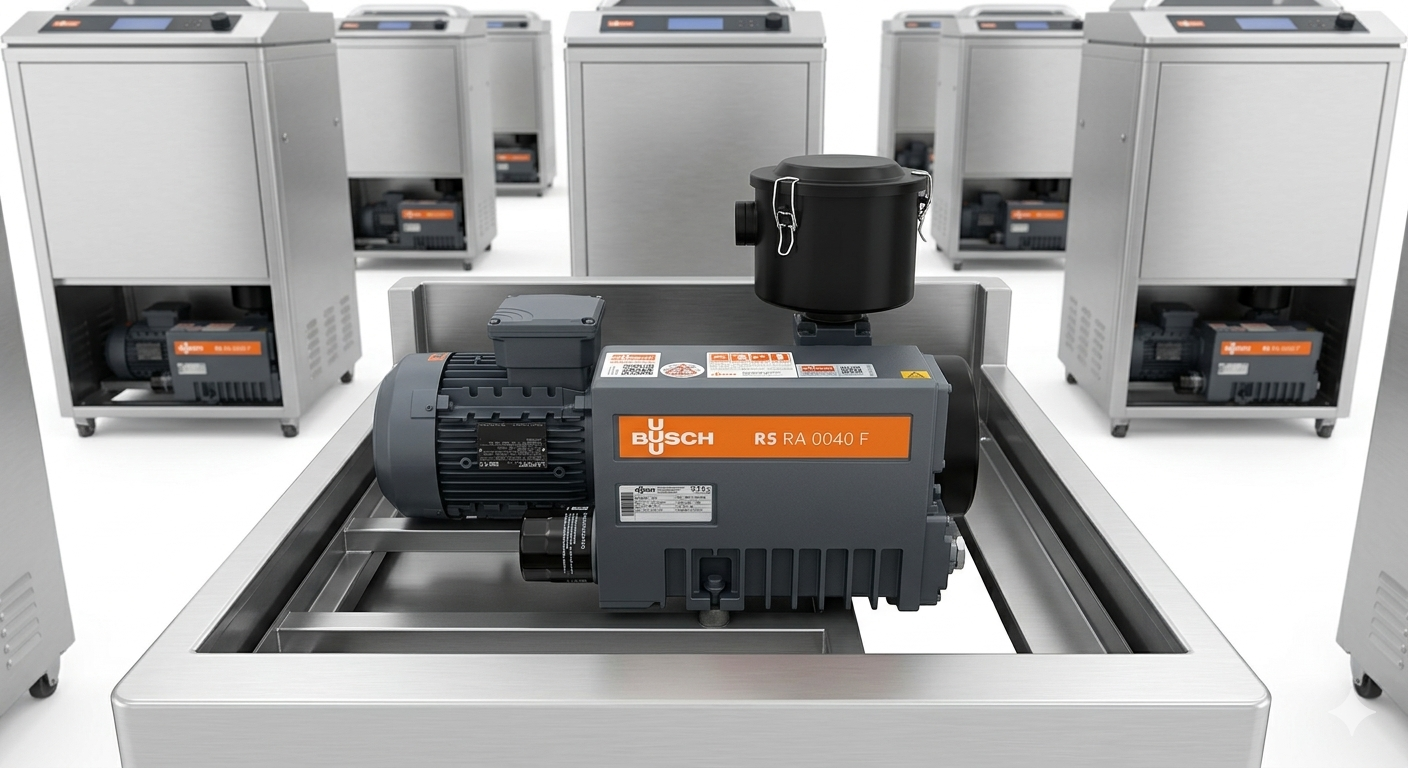

In the vacuum packaging sector, the R5 RA 0040 F is a "workhorse" for chamber machines, rotary vacuum fillers, and larger tray sealers. Its primary advantage is its extraordinary durability. Unlike smaller compact models, the RA version is built with a larger oil reservoir and a more sophisticated thermal management system, allowing it to run 24/7 in harsh, high-moisture environments without overheating or losing suction power.
The pump features highly resilient carbon fiber composite vanes, which are designed to withstand the rapid pressure changes and potential "slugs" of vapor typical in food processing. This resilience translates to lower maintenance costs and significantly reduced downtime. Additionally, its high pumping speed at low pressures ensures rapid evacuation of air, which is critical for maintaining high-speed production lines and extending the shelf life of perishable goods like fresh meat, cheese, and poultry. The integrated oil mist separator ensures the exhaust is clean, meeting the strict hygiene standards required in food-grade facilities.
