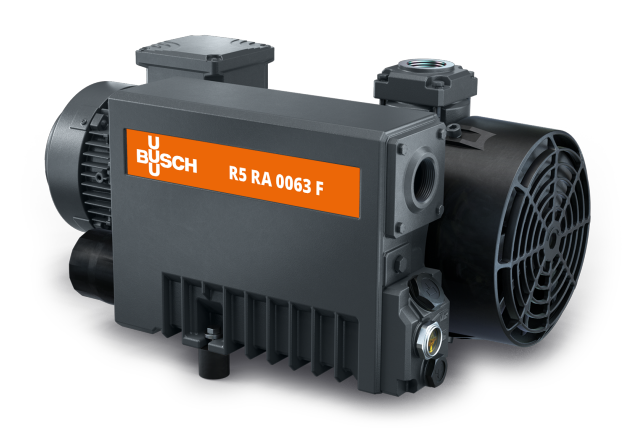

The Busch R5 RA 0063 F stands as one of the most versatile and popular mid-range vacuum pumps in the global industrial market. As a member of the legendary R5 family, this oil-lubricated rotary vane pump is celebrated for its uncompromising reliability and its ability to maintain high performance in the most demanding environments.
The RA 0063 F is designed to provide high throughput while maintaining a manageable footprint:
Nominal Pumping Speed: 63 $m^3/h$ at 50 Hz and 76 $m^3/h$ at 60 Hz.
Ultimate Pressure: 0.1 hPa (mbar), ideal for deep vacuum requirements.
Motor Rating: 2.0 kW, providing the necessary torque for heavy-duty cycles.
Oil Capacity: 2.0 liters, allowing for long service intervals.
Sound Level: Efficiently damped at approximately 64–70 dB(A), depending on frequency.
In the realm of industrial vacuum packaging, the R5 RA 0063 F is the preferred choice for larger chamber machines, automatic thermoforming lines, and centralized vacuum systems. Its primary advantage is its thermal stability and moisture tolerance. Vacuum packaging often involves "wet" products or temperature-sensitive foods that release vapors; the RA 0063 F is equipped with a sophisticated gas ballast system that prevents these vapors from condensing inside the pump, thereby protecting the internal components from corrosion and ensuring consistent vacuum depth.
Additionally, the high pumping speed of 63 $m^3/h$ significantly reduces evacuation times, which is the "bottleneck" in high-speed packaging lines. By reaching the target vacuum faster, manufacturers can increase their cycles per minute, directly boosting ROI. The pump is also designed for easy maintenance; all service points are located on one side, and the high-efficiency exhaust filters can be changed quickly, ensuring that downtime is kept to an absolute mi nimum. Its heavy-duty construction means it can withstand the rigorous wash-down procedures common in the food industry.
