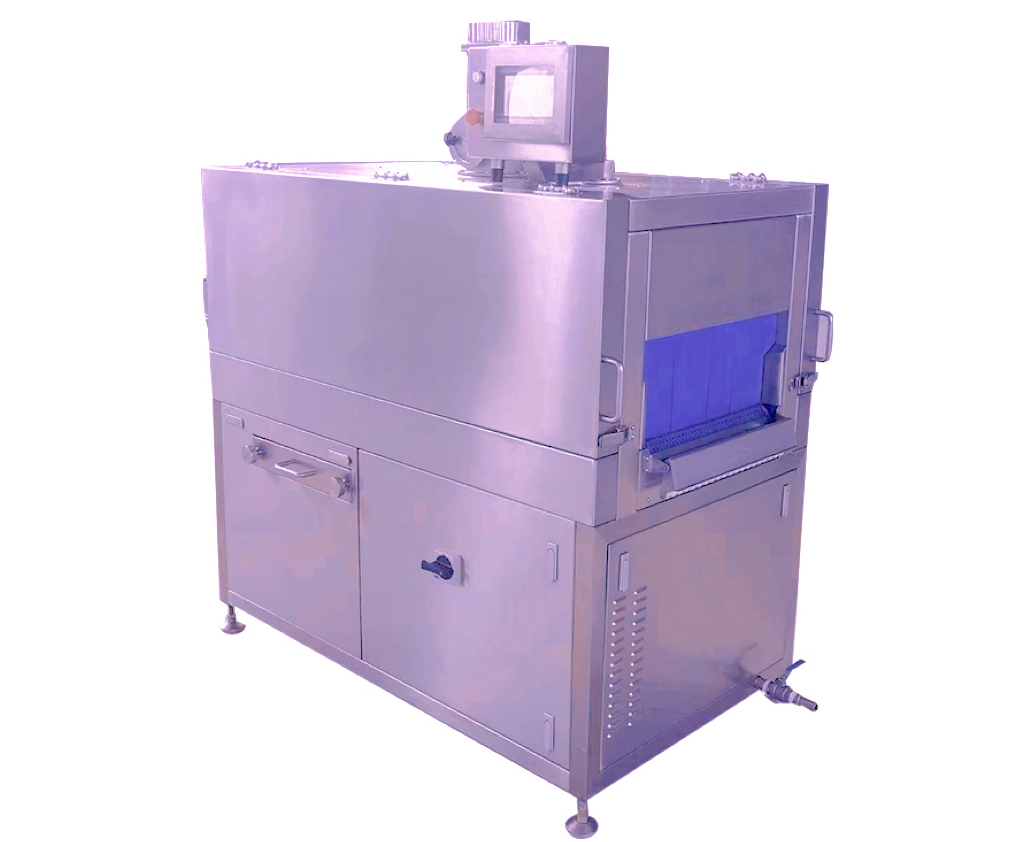

Shrink Tunnel machine ST-4
Transmission width：520mm
Transmission speed：~15m/min
Shrinkage temperature 80-90℃ (temperature adjustable)
Heating time：~15 minutes (15-85℃)
Noise level ≤65dB
Standard configuration:
■ Food grade 304 stainless steel
■ PLC touch screen control interface
■ Automatic water level control, equipped with manual control main valve
■ Adjustable temperature control, automatic water temperature heating
■ High temperature resistant PP conveyor belt
■ Frequency conversion speed regulation
■ The inlet/outlet are connected by polymer transition rollers
■ 6-stage steam curtain
■ Up and down reciprocating spray
Water supply:
Water: tap water
Connection: DN25
Pressure: 2-6 bar
Water tank: 100L
Voltage: 220/380/480V 50/60HZ 3Phase
Installed power 64KW (electric heating)
Current: 180 amps (electric heating)
Weight: 450kgs
Dimension: 1500*900*1750mm
